0.72N.m stepper motor CE ROHS 42mm series Nema 17

Short Description:

Shenzhen Bobet Technology Co.,Ltd develop,design and make motors,such as 12v dc motors,24v dc motors,48v dc motors,90v dc motors,110v/220v dc motors,stepper motor,servo motors,geared stepper motors and geared dc motors,brushless dc motors(BLDC motors),nema 8,nema11,nema 14,nema 16,nema 17,nema 23,nema 24,nema 34,nema 34 series hybrid stepper motors or called stepping motors,closed loop stepper motors(easy servo motors),DC servo motors,AC servo motors,precision gearbox,bevel gearbox,right angl...


Product Detail

Other Detail

Product Tags

Shenzhen Bobet Technology Co.,Ltd develop,design and make motors,such as 12v dc motors,24v dc motors,48v dc motors,90v dc motors,110v/220v dc motors,stepper motor,servo motors,geared stepper motors and geared dc motors,brushless dc motors(BLDC motors),nema 8,nema11,nema 14,nema 16,nema 17,nema 23,nema 24,nema 34,nema 34 series hybrid stepper motors or called stepping motors,closed loop stepper motors(easy servo motors),DC servo motors,AC servo motors,precision gearbox,bevel gearbox,right angle gearbox,precision planetary gearbox,single phase,3 phases AC motors,which is about 100w,200w,300w,400w,500w,600w capacity.
Our factory was built in 2007,has more than 10years manufacturing experience of motors. we will be glad to see our products and service are helpful to improve the efficiency and reduce the cost for our customers. We are ready to help our customers to solve any problems all the time,such as consulting, quotation, and proofing.We offer OBM,ODM & OEM service for customizable brushless dc motor,stepper motor,gear dc motor,servo motor,precision gearboxes and drivers more than 10 years. we do business with reliable products, responsible attitude, win-win mentality,known as BM brand.

Motor data list:

Model Name Step angle Current
Input voltage Torque Motor length
Phase number Motor Weight(Kg)
BS42L60IE 1.8 2A 24-36V 0.72N.m 60mm 2 0.5

Motor advantage:
Reliable, precision gear, long life time, save energy, low noise, smoothly rotate
Easy speed regulation and reversible
Motor application:
Industrial machine, AGV, Robot, ATM, Car, Medical machine, Household, agricultural machinery, farm machinery,CNC, Automatic machine, lawn mower, Oven machine,Door opener, Barrier gate, Automatic door, windows, curtains, toys, Juicer, Harvester, Sweeping machine, truck door, pump, Engraving machine

Product Characteristics:
1. New PID current control technology.
2. The maximum pulse response frequency is up to 200KHZ.
3. The torque decay small at speeds up to 3000rpm.
4. Built-in alarm output, convenient for motoring and control.
5. Intelligent adjustment of current, reduce vibration, noise and heat, and improve efficiency by more than 25%.
6. Pulse/direction (PU/DR) control.
7. High response,  fast rectification, rectification time can achieve 1ms.
8. Voltage range: DC 24v-36v.
9. Excellent high speed and rigidity, perfect integration of servo and step advantages in one.
10. With over voltage, low voltage, and other protection functions.
11. Integrated designs of integrated driver motor, superior field anti-interference capability.
12. Convenient installation, small space occupation and simple wiring.
13. With over-current, over-voltage, wrong phase, short-circuit and position super differential protection functions.

It is mainly applied to small and medium-sized automation equipment and instruments. Such as wire stripping machine, marking machine, cutter, plotter, electronic processing equipment, medical equipment and automation equipment and instruments.

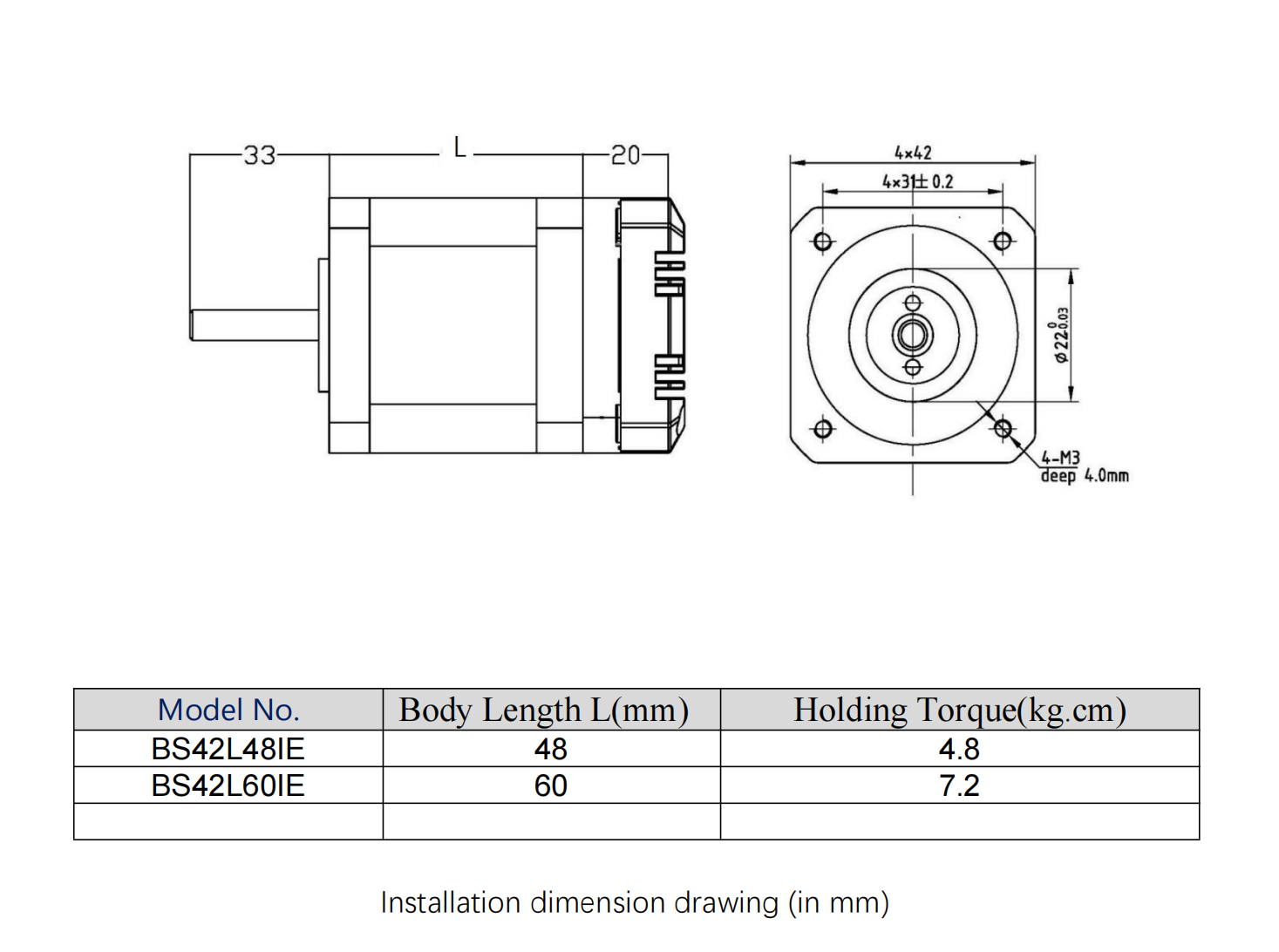

Motor dimension:

Closed loop stepper motor 42mm series size



Company profile

Our comany and factory were built in 2008, mainly engaged in the design, R & D, production and sales of mechanical,electrical, automation equipment and mechanical parts, such as dc motors,ac motors,stepper motors,servo motors with most kinds of  gearbox,and drivers.

Qualification (ISO,Trademark)

We have ISO certification, BOBET,BM,BM Motors are our trademarks.

Other products (major categories)

DC motors,AC motors,Servo motors, motor gear motors and drivers.

Please feel free to contact us to get more help ,like sample ordering test, datasheets,catalogue,order, or technical support.



Contact us:

Lisa Chian/Sales Supervisor

Mobile/Wechat: 86-135 28805695

Mail: isales201@szbobet.com

Web: www.szbobet.com

Post Code:  518131

Add : Bld.L,Dongyi Industrial Park,Rd.Jinglongzhonghuan,Minzhi Street,

Longhua Area,Shenzhen City,Guangdong Province, China
