Datalist:

1、Rated voltage: DC 12.0V

2、Phase No.: 4

3、Ratio: 1: 64

4、Step angle: 5.625°/64

5、Drive: 4-PH 8 Step

6、No load output frequence: Max 1200Hz

7、No load input frequence: Max 800Hz

8、Torque: Max 1000gf.cm (DC12V 100Hz)

9、Resistance: 200Q±7%(25°C)

10、Self-positioning torque: Max 600gf.cm

11、Insulation resistance: Max 50MQ(500V,DC)

12、Insulation dielectric strength: 600V AC/1S,<=1mA

13、Temperature rise: <=40K

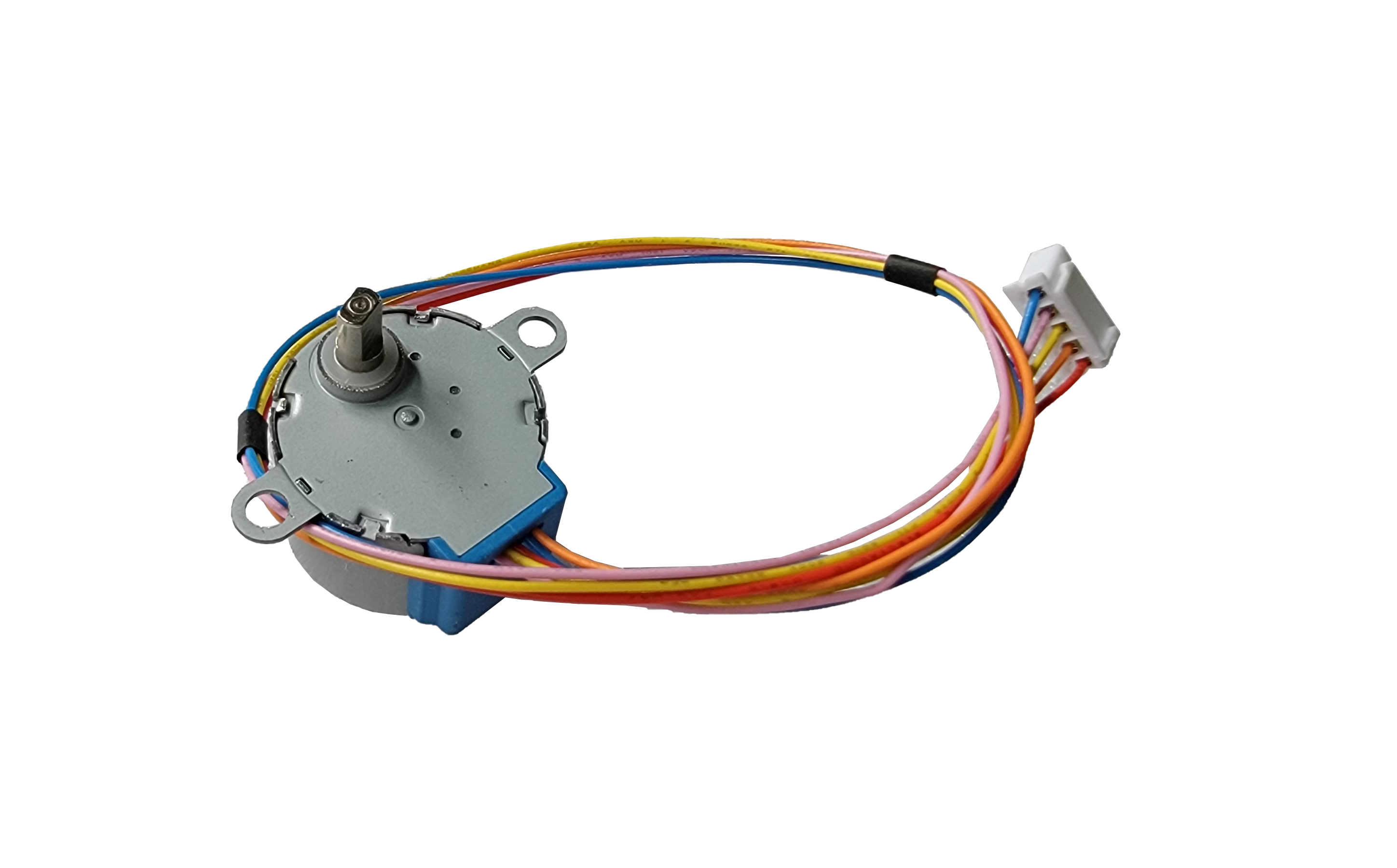

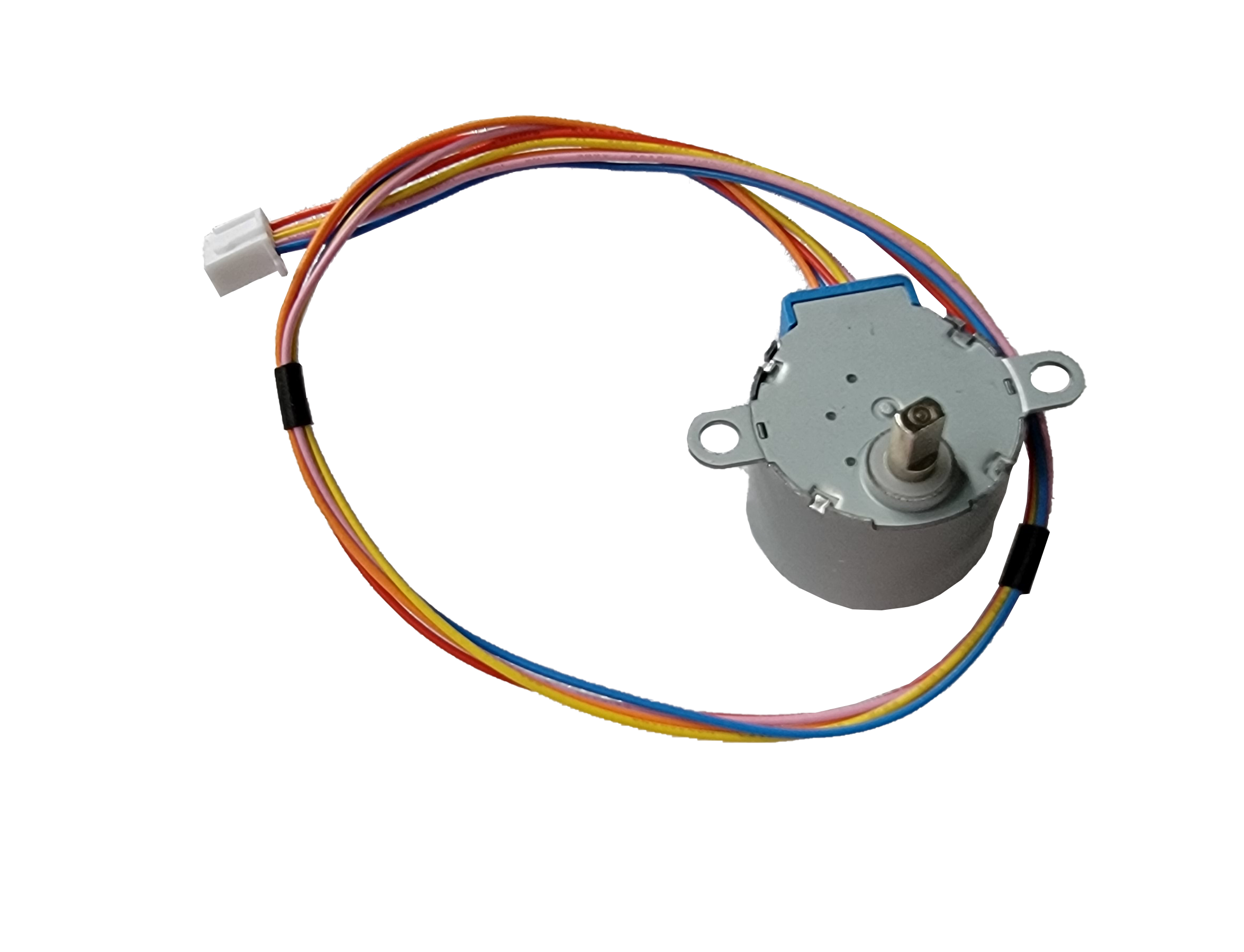

This is a PM stepper motor with 64:1 ratio , it applied on air-conditioning air outlets and windshields, light and small valves.
