BGM37D555 DC brushed motor with precision offset shaft gear for Medical equipment, Robots

Short Description:

Shenzhen Bobet Technology Co.,Ltd develop,design and make motors,such as 12v dc motors,24v dc motors,48v dc motors,90v dc motors,110v/220v dc motors,stepper motor,servo motors,geared stepper motors and geared dc motors,brushless dc motors(BLDC motors),nema 8,nema11,nema 14,nema 16,nema 17,nema 23,nema 24,nema 34,nema 34 series hybrid stepper motors or called stepping motors,closed loop stepper motors(easy servo motors),DC servo motors,AC servo motors,precision gearbox,bevel gearbox,right angl...


Product Detail

Other Detail

Product Tags

Shenzhen Bobet Technology Co.,Ltd develop,design and make motors,such as 12v dc motors,24v dc motors,48v dc motors,90v dc motors,110v/220v dc motors,stepper motor,servo motors,geared stepper motors and geared dc motors,brushless dc motors(BLDC motors),nema 8,nema11,nema 14,nema 16,nema 17,nema 23,nema 24,nema 34,nema 34 series hybrid stepper motors or called stepping motors,closed loop stepper motors(easy servo motors),DC servo motors,AC servo motors,precision gearbox,bevel gearbox,right angle gearbox,precision planetary gearbox,single phase,3 phases AC motors,which is about 100w,200w,300w,400w,500w,600w capacity.
Our factory was built in 2007,has more than 10years manufacturing experience of motors. we will be glad to see our products and service are helpful to improve the efficiency and reduce the cost for our customers. We are ready to help our customers to solve any problems all the time,such as consulting, quotation, and proofing.We offer OBM,ODM & OEM service for customizable brushless dc motor,stepper motor,gear dc motor,servo motor,precision gearboxes and drivers more than 10 years. we do business with reliable products, responsible attitude, win-win mentality,known as BM brand.

Motor data list:

Model Name Voltage(V) No load speed (rpm)
Load speed(rpm) Load torque(N.m) Stall torque Motor Weight(Kg)
D555 12/24v 3300/8000rpm 2800/7150rpm 200/260 gf.cm 1150/1500 gf.cm 0.4

Stepper Motor advantage:
Reliable, precision gear, long life time, save energy, low noise, smoothly rotate
Easy speed regulation and reversible
Motor application:
Industrial machine, AGV, Robot, ATM, Car, Medical machine, Household, agricultural machinery, farm machinery,CNC, Automatic machine, lawn mower, Oven machine,Door opener, Barrier gate, Automatic door, windows, curtains, toys, Juicer, Harvester, Sweeping machine, truck door, pump, Engraving machine

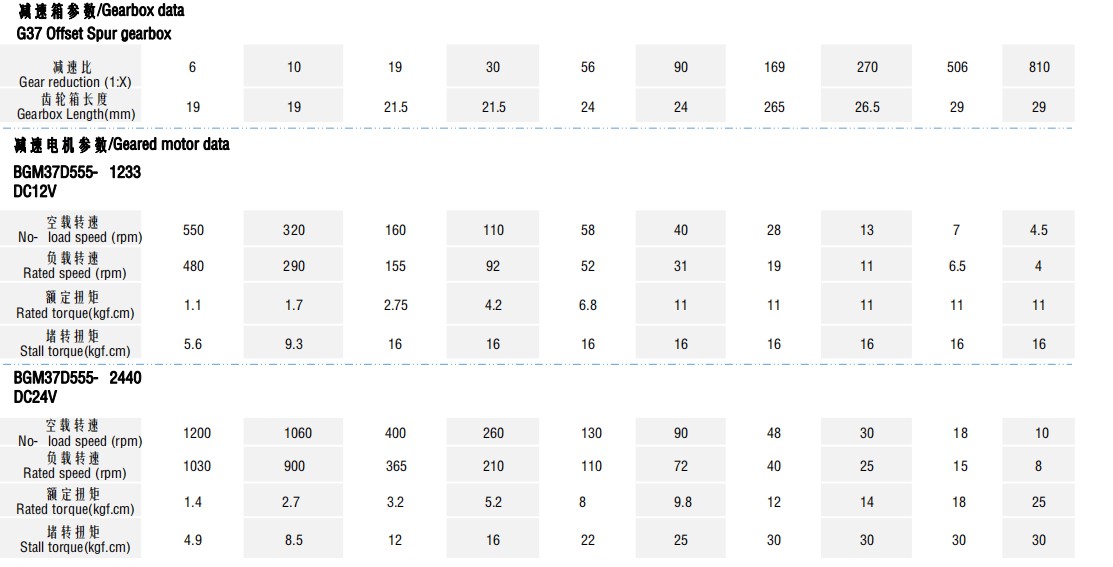

Gearbox & geared motor Data:
减速箱和减速电机参数

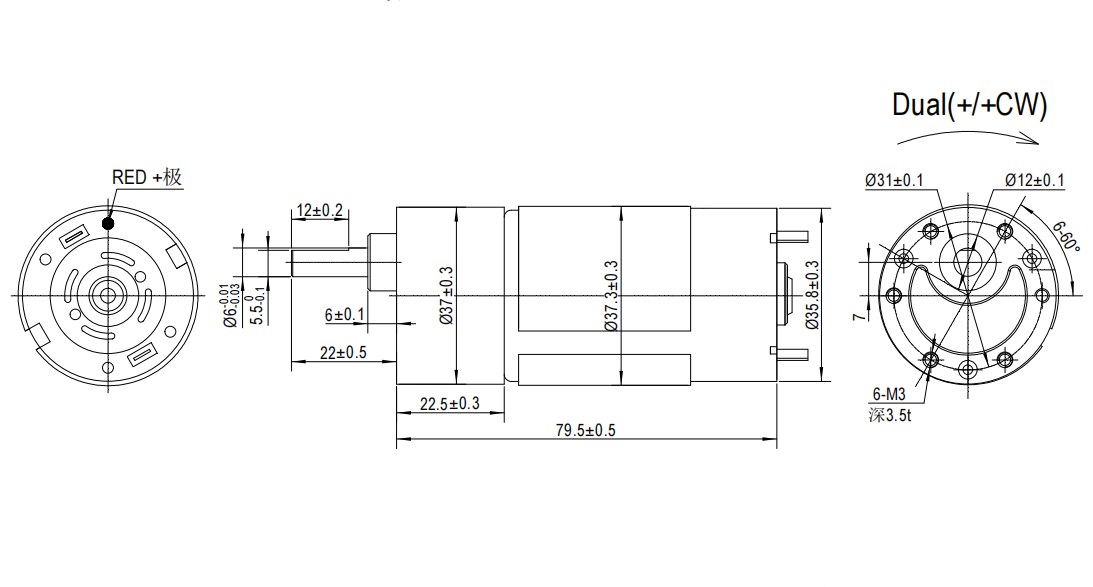

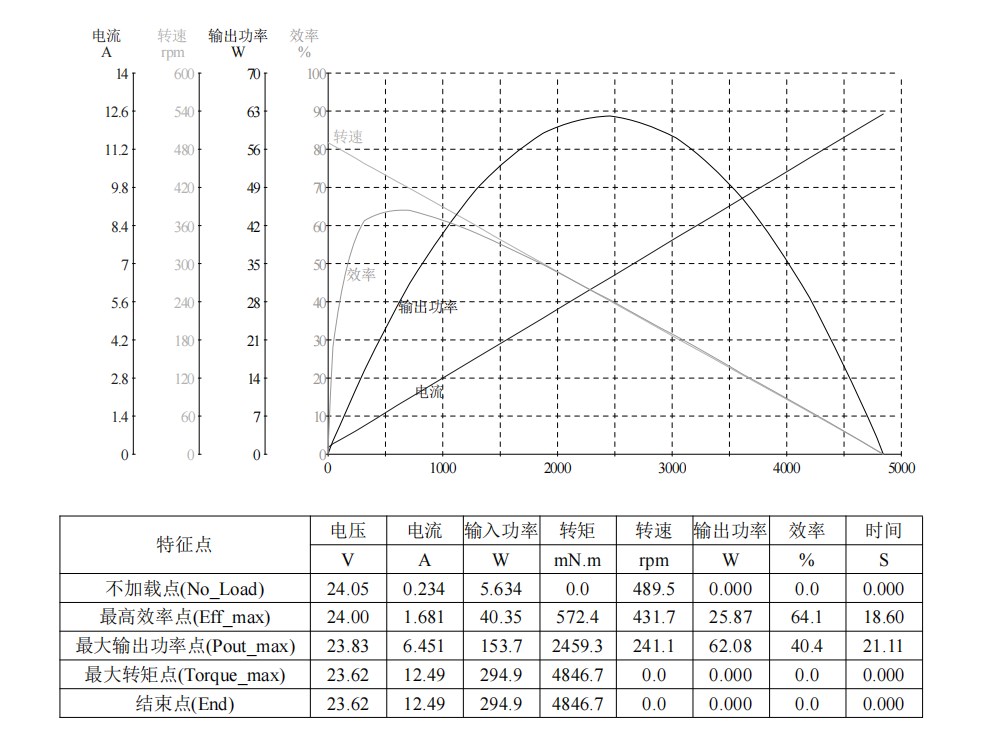

Motor dimension:BGM37D555 SIZE Motor speed-torque curve:

speed-torque curve
