cost effective DC brushed 12V motor with precision offset shaft gear for Medical equipment, Robots

Short Description:

Shenzhen Bobet Technology Co.,Ltd develop,design and make motors,such as 12v dc motors,24v dc motors,48v dc motors,90v dc motors,110v/220v dc motors,stepper motor,servo motors,geared stepper motors and geared dc motors,brushless dc motors(BLDC motors),nema 8,nema11,nema 14,nema 16,nema 17,nema 23,nema 24,nema 34,nema 34 series hybrid stepper motors or called stepping motors,closed loop stepper motors(easy servo motors),DC servo motors,AC servo motors,precision gearbox,bevel gearbox,right angl...


Product Detail

Other Detail

Product Tags

Shenzhen Bobet Technology Co.,Ltd develop,design and make motors,such as 12v dc motors,24v dc motors,48v dc motors,90v dc motors,110v/220v dc motors,stepper motor,servo motors,geared stepper motors and geared dc motors,brushless dc motors(BLDC motors),nema 8,nema11,nema 14,nema 16,nema 17,nema 23,nema 24,nema 34,nema 34 series hybrid stepper motors or called stepping motors,closed loop stepper motors(easy servo motors),DC servo motors,AC servo motors,precision gearbox,bevel gearbox,right angle gearbox,precision planetary gearbox,single phase,3 phases AC motors,which is about 100w,200w,300w,400w,500w,600w capacity.
Our factory was built in 2007,has more than 10years manufacturing experience of motors. we will be glad to see our products and service are helpful to improve the efficiency and reduce the cost for our customers. We are ready to help our customers to solve any problems all the time,such as consulting, quotation, and proofing.We offer OBM,ODM & OEM service for customizable brushless dc motor,stepper motor,gear dc motor,servo motor,precision gearboxes and drivers more than 10 years. we do business with reliable products, responsible attitude, win-win mentality,known as BM brand.

Motor data list:

Model Name Voltage(V) No load speed (rpm)
Gearbox speed(rpm) Load torque(N.m) Stall torque Motor Weight(Kg)
D3530 12v 4000rpm 4rpm 40 gf.cm 40 gf.cm 0.4

Stepper Motor advantage:
Reliable, precision gear, long life time, save energy, low noise, smoothly rotate
Easy speed regulation and reversible
Motor application:
Industrial machine, AGV, Robot, ATM, Car, Medical machine, Household, agricultural machinery, farm machinery,CNC, Automatic machine, lawn mower, Oven machine,Door opener, Barrier gate, Automatic door, windows, curtains, toys, Juicer, Harvester, Sweeping machine, truck door, pump, Engraving machine

With dc motor controller:

This product below is brush dc motor speed controller,DC10V-50V, max. current up to 200A(momentary), normal rated current is 100-120A(long time).
with Potentiometer for speed control, with button for direction control, used for brush dc motor control.

Main Performance:
(1)Nominal voltage: DC10V-50V wide range dc voltage input.
(2)Power: 1-7500W(max current:200A,rated current:100A-120A)
(3)No load current: 0.14A(no load max.current:140ma)
(4)PWM range:0%-99.99%
(5)PWM frequence:15khz
(6)Temperature:-20℃ – 40℃
(7)Size:length: 239mm; width: 115mm;height:65mm (not include the button)
(8)Weight:1.5kg

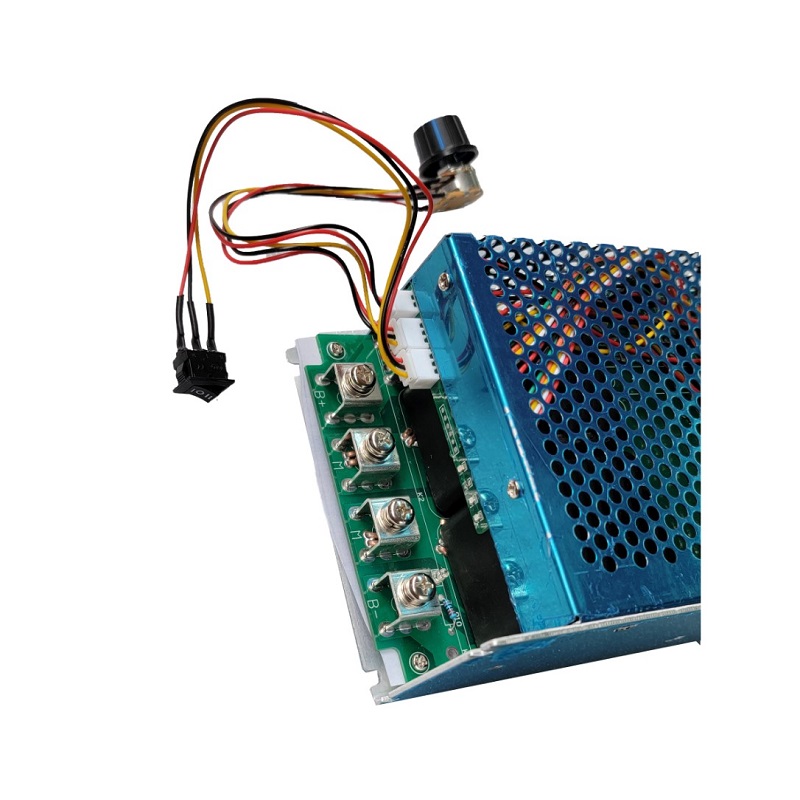

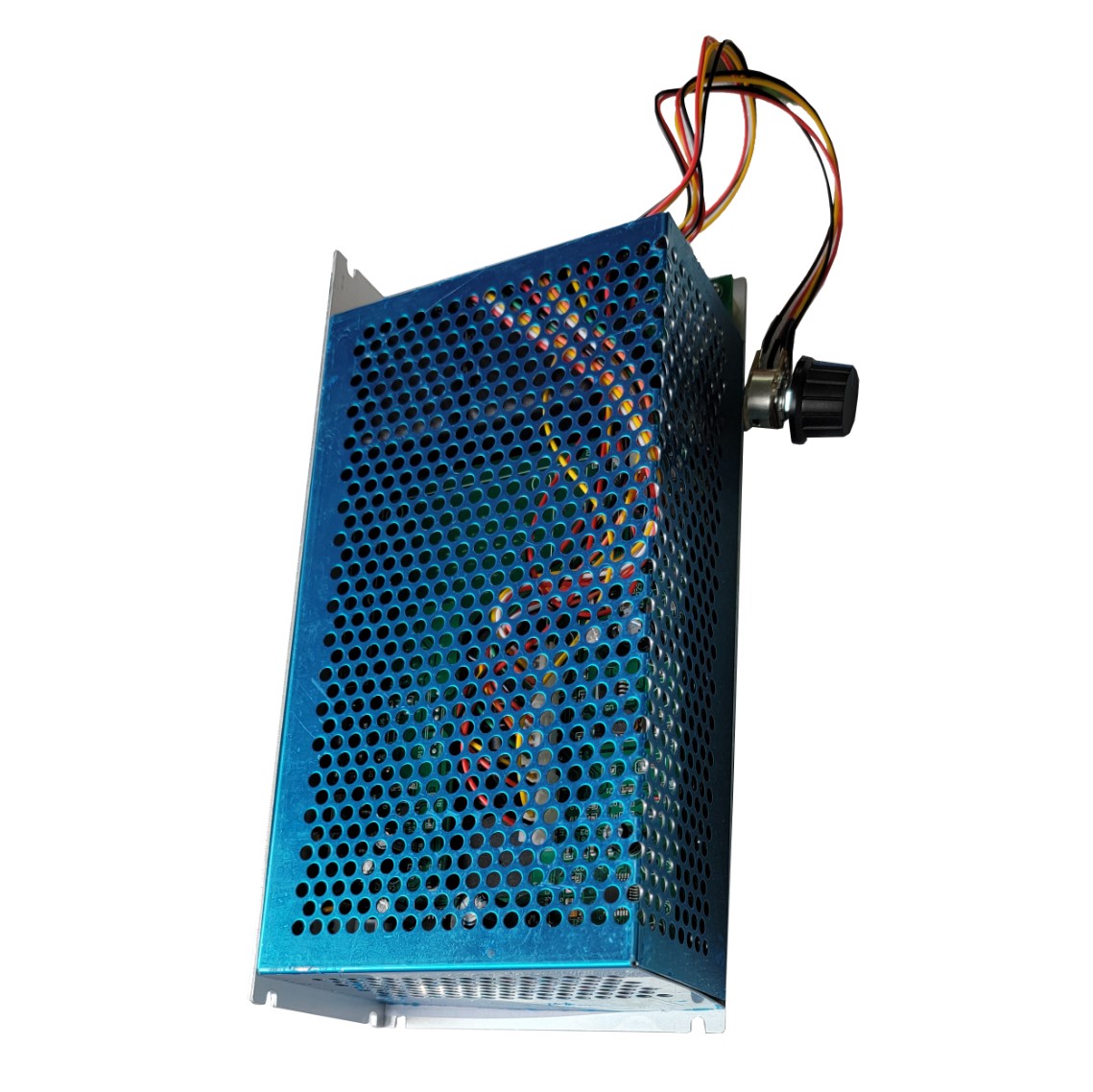

100A 800W DC MOTOR DRIVER-1 120A 800W DRIVER-1

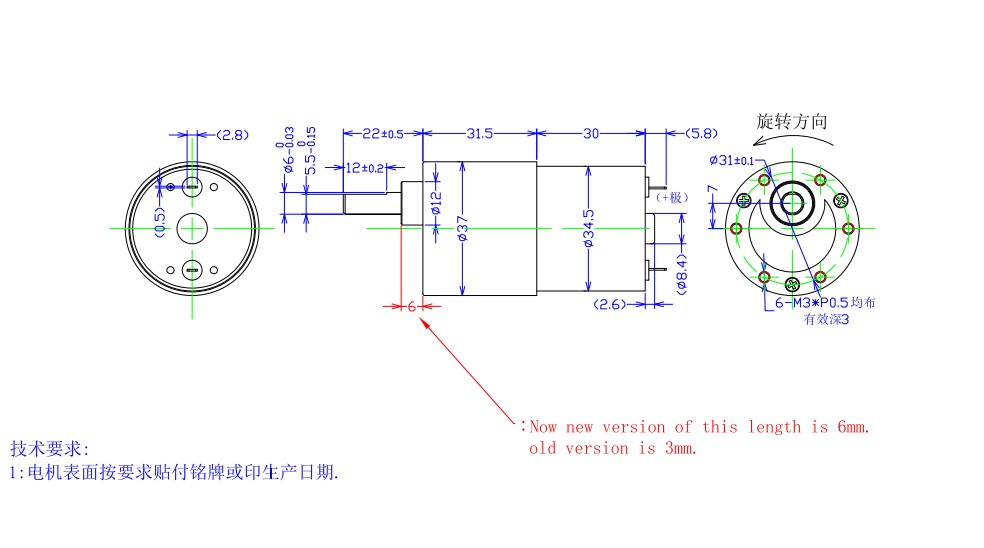

Motor dimension:

size





Sample&bulk terms

 When we clearly understand the exact needs of customers,we can make samples for customers. after samples are approved ,All parameters, specifications ,life time,dimensions,and performance of the products of subsequent batch orders will be consistent with the samples.

Q1: Do we provide free sample?

A1: Depends. if we have same or close performance products in stock, free sample is possible. but normally we need to make and have to charge, because samples cost.

How to order

Contact us to order online (by alibaba online Credit Trade Assurance service) or Bank T/T.



we accept online order by alibaba or offline order. we have export business license, and our bank can accept any   payment from any countries, our logistics agent and us will ship goods to your hand if you want.

Just contact us to make proforma invoice or commercial invoice, or online order, depends on your demands.
