Gear PM stepper motor with hybrid structure for electric door-lock
Shenzhen Bobet Technology Co.,Ltd develop,design and make motors,such as 12v dc motors,24v dc motors,48v dc motors,90v dc motors,110v/220v dc motors,stepper motor,servo motors,geared stepper motors and geared dc motors,brushless dc motors(BLDC motors),nema 8,nema11,nema 14,nema 16,nema 17,nema 23,nema 24,nema 34,nema 34 series hybrid stepper motors or called stepping motors,closed loop stepper motors(easy servo motors),DC servo motors,AC servo motors,precision gearbox,bevel gearbox,right angle gearbox,precision planetary gearbox,single phase,3 phases AC motors,which is about 100w,200w,300w,400w,500w,600w capacity.
Our factory was built in 2007,has more than 10years manufacturing experience of motors. we will be glad to see our products and service are helpful to improve the efficiency and reduce the cost for our customers. We are ready to help our customers to solve any problems all the time,such as consulting, quotation, and proofing.We offer OBM,ODM & OEM service for customizable brushless dc motor,stepper motor,gear dc motor,servo motor,precision gearboxes and drivers more than 10 years. we do business with reliable products, responsible attitude, win-win mentality,known as BM brand.
Motor data list:
| Model Name | Voltage(V) | Radio | Phase No. |
torque（N.m） | Motor Weight（Kg） | Step Angle |
| 24BYJ48 | 12v | 16,32,64 | 4 | 0.1N.m | 0.3 | 5.625° |
Stepper Motor advantage:
Reliable, precision gear, long life time, save energy, low noise, smoothly rotate
Easy speed regulation and reversible
Motor application:
Industrial machine, AGV, Robot, ATM, Car, Medical machine, Household, agricultural machinery, farm machinery,CNC, Automatic machine, lawn mower, Oven machine,Door opener, Barrier gate, Automatic door, windows, curtains, toys, Juicer, Harvester, Sweeping machine, truck door, pump, Engraving machine

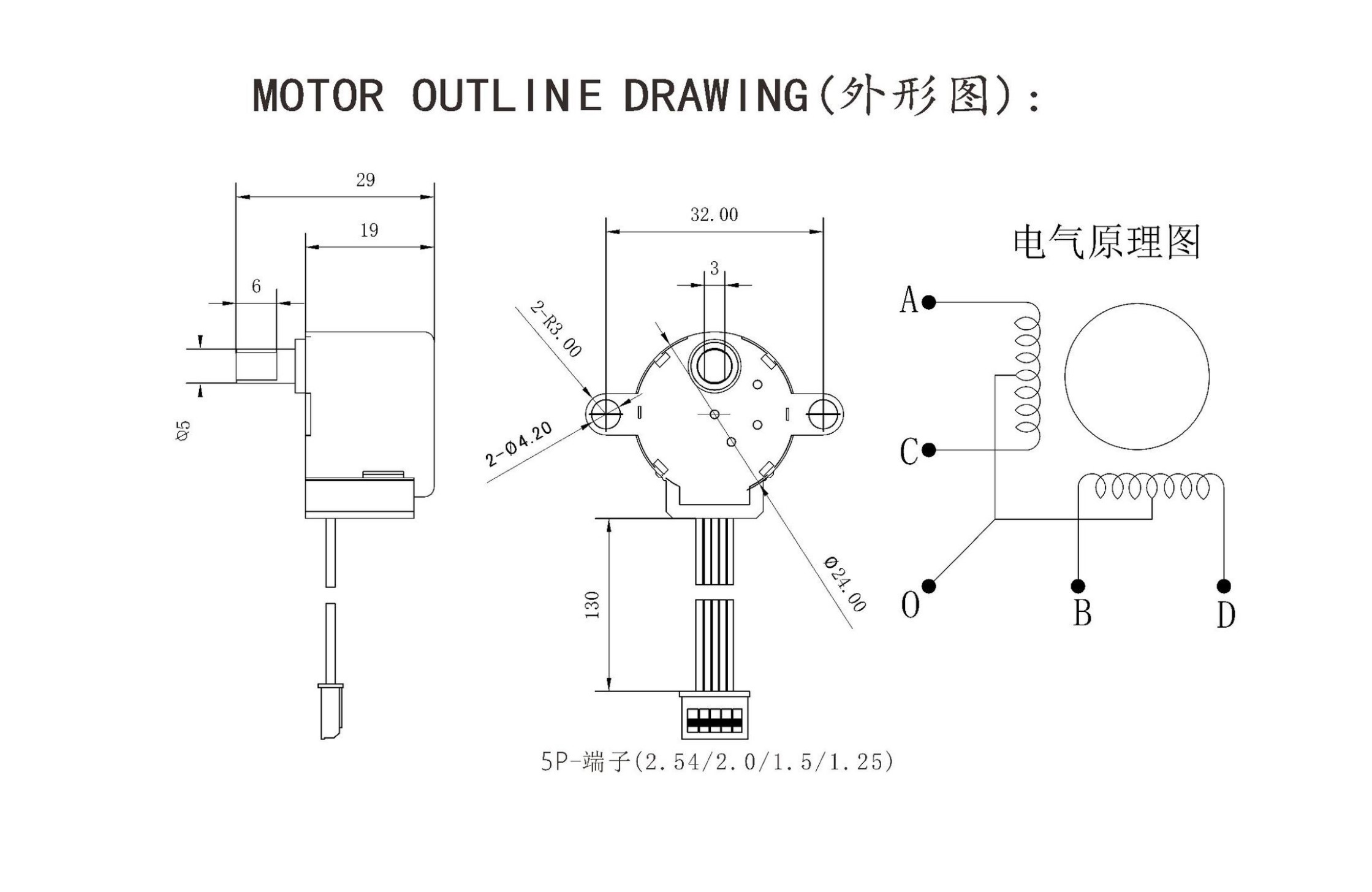

Motor dimension:
特点Features:
*混合式结构hybrid structure
*额定电流下耐温升值thermostability up to 80℃ rise at rated current
*细分性能更优异Better performance under Subdivision mode
*空载无细分步距角精度Step Angle Accuracy ±5%（full step, no load）
*绝缘电阻Insulation Resistance 100MΩ Min，500VDC
*介电强度Dielectric Strength
应用Application:
精密仪器，电子门锁，数控设备
Precision meters,electric door-lock,digital-machinery
