42HM34-0404 hybrid stepper motor 42mm Nema 17 with wholesale factory price

Short Description:

Shenzhen Bobet Technology Co.,Ltd develop,design and make motors,such as 12v dc motors,24v dc motors,48v dc motors,90v dc motors,110v/220v dc motors,stepper motor,servo motors,geared stepper motors and geared dc motors,brushless dc motors(BLDC motors),nema 8,nema11,nema 14,nema 16,nema 17,nema 23,nema 24,nema 34,nema 34 series hybrid stepper motors or called stepping motors,closed loop stepper motors(easy servo motors),DC servo motors,AC servo motors,precision gearbox,bevel gearbox,right angl...


Product Detail

Other Detail

Product Tags

Shenzhen Bobet Technology Co.,Ltd develop,design and make motors,such as 12v dc motors,24v dc motors,48v dc motors,90v dc motors,110v/220v dc motors,stepper motor,servo motors,geared stepper motors and geared dc motors,brushless dc motors(BLDC motors),nema 8,nema11,nema 14,nema 16,nema 17,nema 23,nema 24,nema 34,nema 34 series hybrid stepper motors or called stepping motors,closed loop stepper motors(easy servo motors),DC servo motors,AC servo motors,precision gearbox,bevel gearbox,right angle gearbox,precision planetary gearbox,single phase,3 phases AC motors,which is about 100w,200w,300w,400w,500w,600w capacity.
Our factory was built in 2007,has more than 10years manufacturing experience of motors. we will be glad to see our products and service are helpful to improve the efficiency and reduce the cost for our customers. We are ready to help our customers to solve any problems all the time,such as consulting, quotation, and proofing.We offer OBM,ODM & OEM service for customizable brushless dc motor,stepper motor,gear dc motor,servo motor,precision gearboxes and drivers more than 10 years. we do business with reliable products, responsible attitude, win-win mentality,known as BM brand.

Motor data list:

Model Name Step angle Leads number
Rated voltage Holding Torque(kg.cm) Motor length
Phase number Motor Weight(Kg)
42HM34-0404 0.9 4 8V 1.8 34mm 2 0.22

Motor advantage:
Reliable, precision gear, long life time, save energy, low noise, smoothly rotate
Easy speed regulation and reversible
Motor application:
Industrial machine, AGV, Robot, ATM, Car, Medical machine, Household, agricultural machinery, farm machinery,CNC, Automatic machine, lawn mower, Oven machine,Door opener, Barrier gate, Automatic door, windows, curtains, toys, Juicer, Harvester, Sweeping machine, truck door, pump, Engraving machine

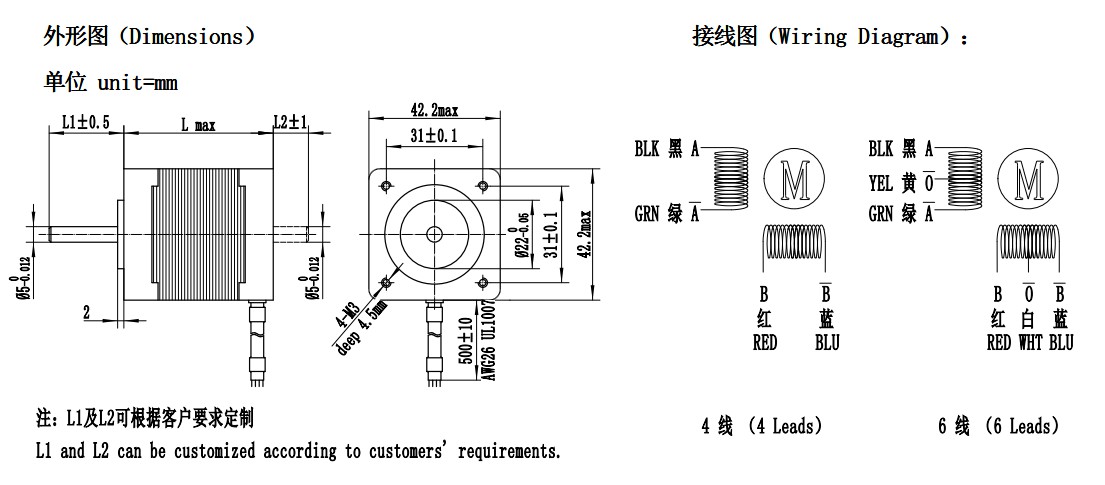

Motor dimension:( The drawing of the motor is only for reference,not the final data, pls inquire our engineers or sales to get the exact specs based on actual requirements.)

尺寸

The length of the motor is optional.

Pls inquire our engineers or sales to get the exact specs based on actual requirements.

We’d like to introduce our main products here, which are hot sell with good quality and best price,

Low voltage DC motor series: 12V DC Motor,24V DC Motor

High voltage DC motor, 110V and 220V

Single phase AC motor: 220Vac motor, 50HZ/60HZ,380Vac Motor

3 phases AC motor: 220Vac motor, 380Vac Motor,50HZ/60HZ

Servo stepper motors

Geared dc motors and geared stepper motors

Brushless dc motors BLDC

You can find out best solutions of motors, motion system.

Stepper motors,closed loop motors ,servo motors,motors with encoder rearch,design,manufacture and custom.



Company profile

Our comany and factory were built in 2008, mainly engaged in the design, R & D, production and sales of mechanical,electrical, automation equipment and mechanical parts, such as dc motors,ac motors,stepper motors,servo motors with most kinds of  gearbox,and drivers.

Qualification (ISO,Trademark)

We have ISO certification, BOBET,BM,BM Motors are our trademarks.

Other products (major categories)

DC motors,AC motors,Servo motors, motor gear motors and drivers.

Please feel free to contact us to get more help ,like sample ordering test, datasheets,catalogue,order, or technical support.
